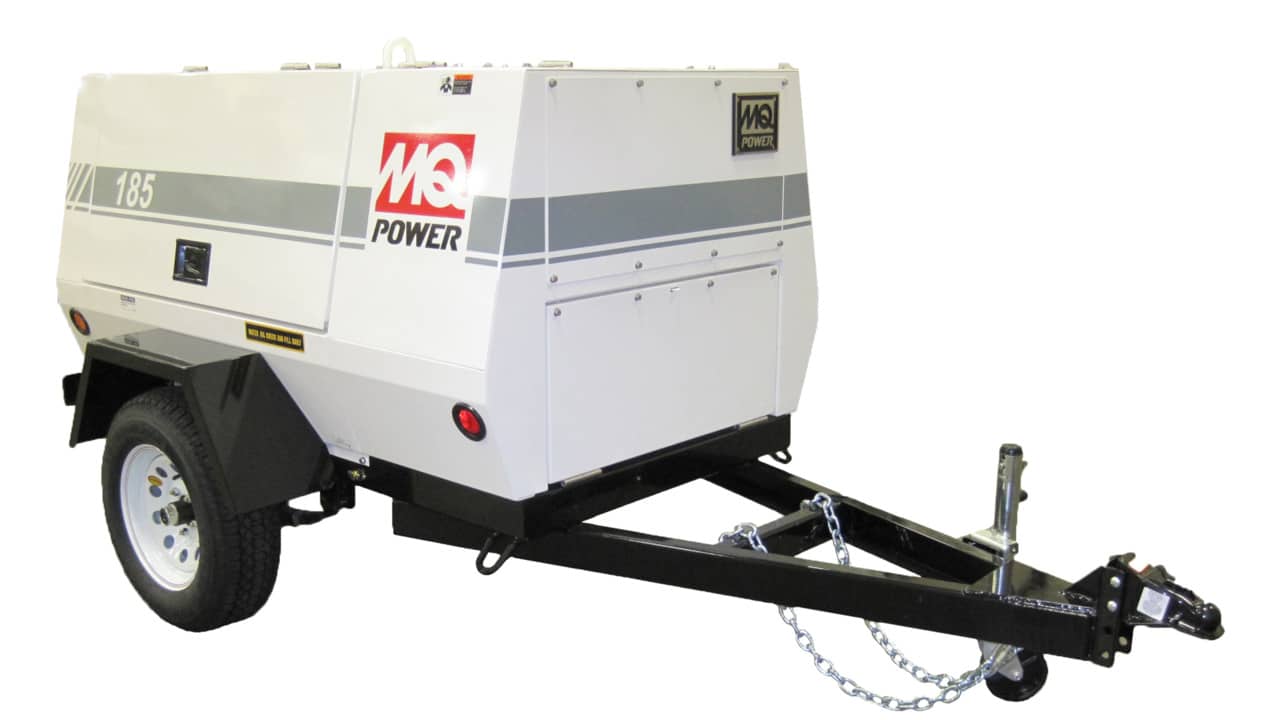

DIS185SSI4F Air Compressor

185 CFM Delivery, Isuzu Tier 4 Final

• Heavy duty, 4-cycle, direct injection, turbocharged diesel engine provides maximum reliability.
• - EPA emissions certified - Tier 4 final emissions compliant.
• - Sound attenuated, weather resistant, steel housing provides operation at 69 dB(A) at 23 feet. Fully lockable enclosure allows safe unattended operation.
• - Large side doors to provide access to engine and compressor.
• - Lockable internal tool box for storing tools and hoses.
• - Bolt on steel fender.
• - D.O.T approved tail lamps, stop lamps, turn signal lamps and side marker lamps.
• - Tongue mounted swivel jack with caster.
• - 4–hole channel allows 3-position, adjustable coupler height.
• - Single-axle design with leaf spring suspension.
• - E-coat and powder coat paint provide durability and weather protection.
• Digital Controller provides readouts with LED status indicator:
  • Compressor Temperature
  • Engine Temperature
  • Engine Speed
  • Fuel Level
  • Complete Engine Diagnostic Tool

• Engine Specifications

  Make/Model	Isuzu / 4LE2T
  Emissions	Tier 4 Final Certified
  Starting System	Electric
  Design	4-cycle, Water Cooled, Direct Injection, Turbocharged
  Gross Engine Power Output	49 bhp	36.5 kW
  Fuel Tank Capacity	24 gal	90 L
  Fuel Consumption:
  Full load	2.52 gph	9.5 lph
  1/2 load	1.36 gph	51 lph
  Coolant Capacity	1.8 gal	6.8 L
  Oil Capacity	2.7 gal	10.2 L
  Battery	12V, Group 27, CCA 800
