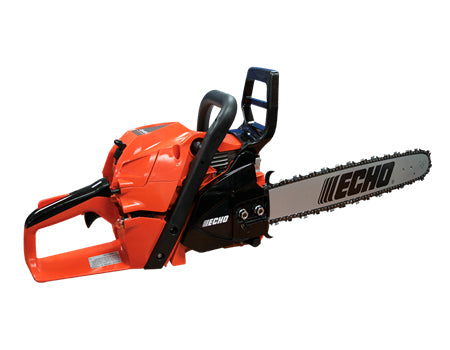

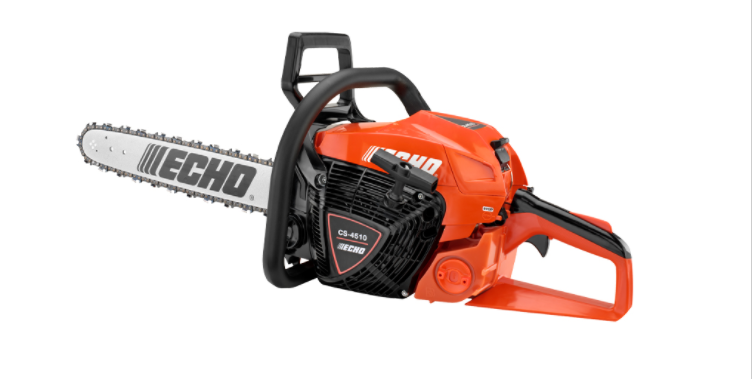

ECHO’s CS-4510 Rear Handle Chainsaw has more power giving you a greater cutting performance when you just have to cut through some timber. It has an automatic adjustable oiler that is ideal when cutting all types of wood. Whether you have storm clean-up to do or just cutting firewood, the CS-4510 is ready to tackle the job.
- 3-point spring vibration reduction system provides operator comfort
- Automatic/adjustable bar oiler allows adjustment of oil flow to match cutting conditions
- Choke with automatic fast idle for easy starting
- Dual-post chain brake improves durability
- Momentary stop switch automatically returns to "on" position
- Purge bulb delivers fresh fuel to carburetor
- Side-access chain tensioner offers easy chain adjustment
- Spring-assist starter reduces starting effort
- Translucent fuel tank clearly indicates fuel level
| Engine Displacement (cc) |
45 |
Oil Capacity (fl oz) |
11.1 |
| Engine Displacement (cu in) |
2.75 |
Dry Weight (lbs)1
|
11.1 |
| Starting System |
Spring-Assist |
Sprocket Cover |
Plastic |
| Ignition System |
Digital |
Bar Type |
Laminated |
| Carburetor |
Butterfly-Valve Diaphragm |
Sprocket Type |
Spur |
| Oiling System |
Automatic/Adjustable |
Handle |
Rear |
| Vibration Reduction System |
Standard |
Fuel Capacity (fl. oz.) |
16.2 |
