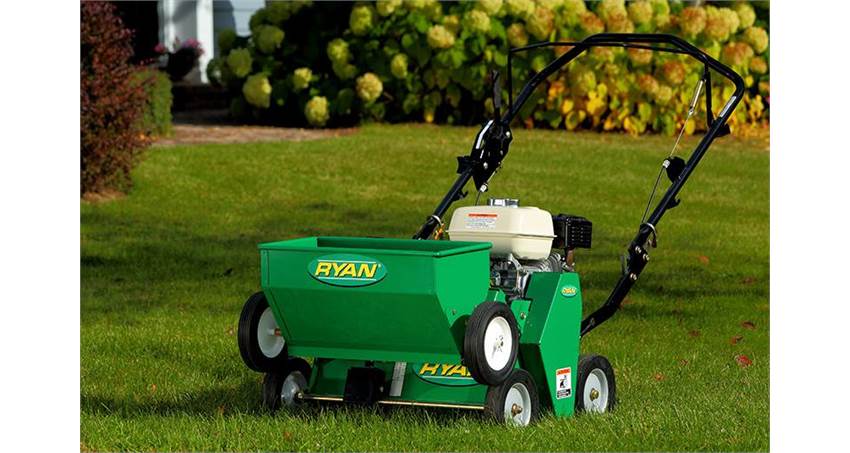

Ryan Ren-O-Thin Power Rake

Unit

• Clutch: Spring-loaded belt tightener
• Drive: A-section V-belt from engine to reel
• Tires: (4) 8 x 1 75 semi-pneumatic, smooth tread
• Cutting Depth: Reel adjustable from 1 in (25 mm) above ground to 0 875 in (22 mm) into ground; microscrew adjustment
• Operating Width: 18 in (457 mm)

Reels/Blades

• Flail Blade Type: 1/8 in. (3 mm) at 1 in. (25 mm) spacing
• Fixed Blade Type: 1/8 in. (1 mm) at 1.0 in. (25 mm) spacing
• Spring Type (Optional): 0.109 in. (2.76 mm) at 0.75 in. (19 mm) spacing
• Blades: Hardened, high-carbon steel
