95 CFM Delivery, Kubota Tier 4 Final

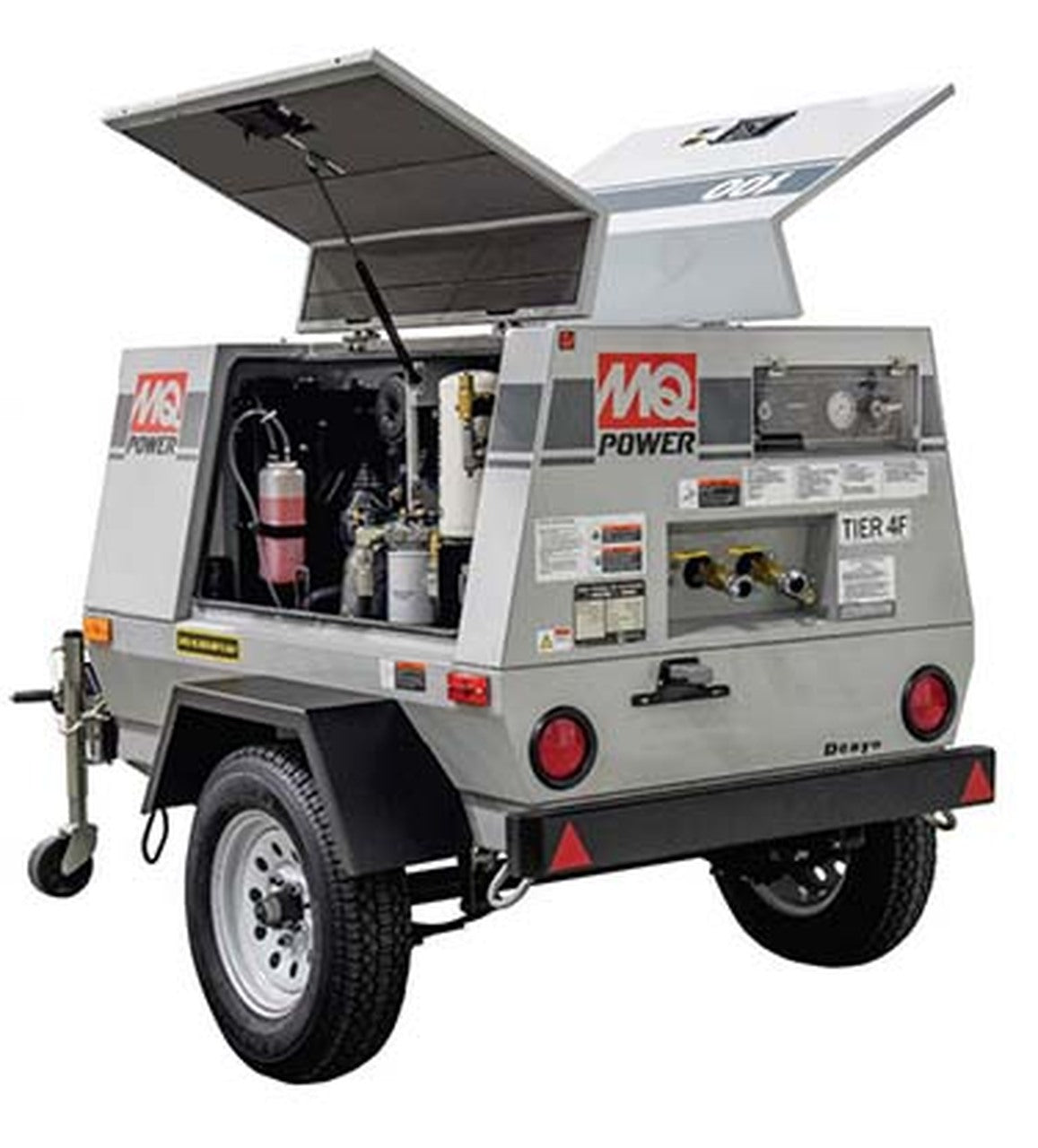

Multiquip is proud to introduce the 95 cubic-feet-per-minute DIS100SSK4F Air Compressor, engineered to meet the needs of the construction and equipment rental professionals. It's powered by a 24.4 horsepower Kubota diesel engine that meets EPA Tier 4 Final engine emissions.
The weather resistant steel housing is fully lockable for safe, unattended operation. The sound attenuated cabinet reduces engine noise during operation. The easy to navigate control panel displays the compressors operating pressure, hours, fuel level as well was providing indicators for oil pressure, water temperature, engine speed, etc. The ST175/80D13 tires provide a smooth, stable towing characteristics for both on highway or around the job site.
Engine Specifications
| Make/Model |
Kubota / D1005-E4B |
| Emissions |
Tier 4 Final Certified |
| Starting System |
Electric |
| Design |
4-cycle, Water Cooled, Direct Injection |
| Gross Engine Power Output |
24.4 bhp |
18.19 kW |
| Fuel Tank Capacity |
10.6 gal |
40 L |
| Fuel Consumption: |
| Full load |
1.61 gph |
6.1 lph |
| 1/2 load |
1.16 gph |
4.4 lph |
| Coolant Capacity |
1.06 gal |
4.0 L |
| Oil Capacity |
1.4 gal |
5.1 L |
| Battery |
12V, Group 24, CCA 650 |
Unit Specifications
| Type |
Rotary Screw |
| Rated Delivery |
95 |
2.8 |
| Rated Operating Pressure |
100 PSI |
6.9 BAR |
| Oil Capacity |
3.3 gal |
12.5 L |
| Air Service Connections Type |
Two 3/4 in NPT |
| Cooling System |
Oil to Air |
| Minimum Operating Pressure |
73 PSI |
5.0 BAR |
| Maximum Operating Pressure |
120 PSI |
8.3 BAR |
Sound Level dB(A)
Full Load at 23 Feet |
70 db(A) |
