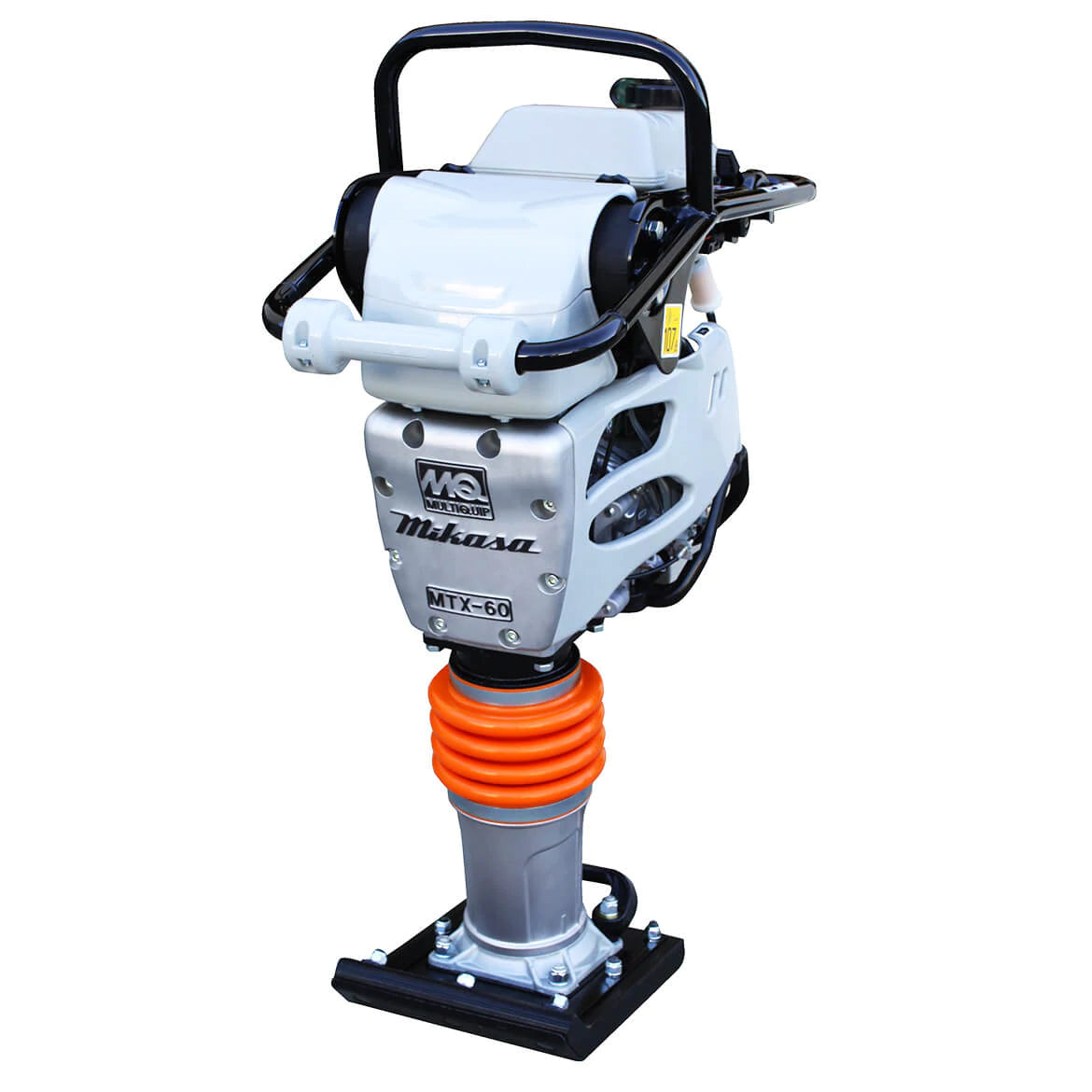

MTX-Series rammers are renowned for performance and ease of operation.
The MTX-Series includes the features most preferred by contractors such as:
- Cyclonic air cleaners that capture 98% of airborne dust particles
- Long-lasting laminated wood and steel shoe
- Low vibration handles for operator comfort
- Combination hour meter/tachometer
- Durable guards to protect the engine from damage
- Redesigned fuel tank to meet EPA standards for evaporative emissions
Unit Specifications
| Blows Per Min. |
Up to 695* |
| Impact Force |
3,064 lbf |
1,390 kgf |
| Shoe Jump Height |
3.1 in |
79 mm |
| Shoe Dimensions (LxW) |
13.4 x 10.4 in
340 x 265 mm |
| Travel Speed Per Min. |
55.8 ft |
17 m |
| Fuel Tank Capacity |
2.7 qt |
2.5 L |
Dimensions & Weights
| Overall Length |
28.1 in |
714 mm |
| Overall Width |
13.8 in |
350 mm |
| Overall Height |
40.4 in |
1027 mm |
| Operating Weight |
141 lb |
64 kg |
Engine Specifications
| Engine Make/Model |
Honda GX100 |
| Start Method |
Recoil |
| Engine Power |
2.8 HP |
2.1 kW |
| Engine RPM |
4,100 |
| Fuel Type |
Gasoline |
